Brand: VEX Robotics
Product Code: 276-2016
Availability: In Stock
Not available in your region

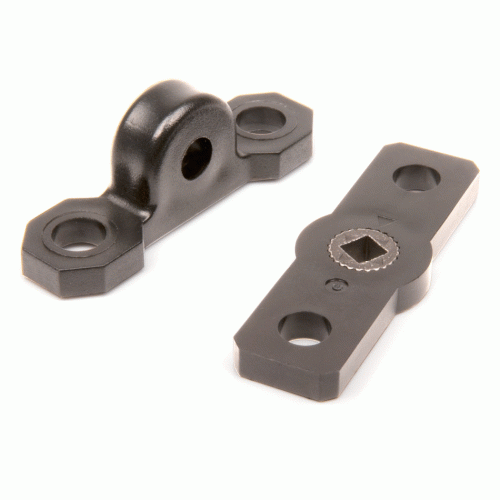

Bearing Blocks mount on a piece of structure and supports a shaft which is offset either above, below, or to the side of the structure.

Lock Bars allow any VEX component to be “locked” to a shaft so that it will spin with the shaft.

Note: These items are not sold separately.

Overview

Bearing Block: Another type of bearing used in the VEX Motion Subsystem is a Bearing Block; these are similar to the “pillow- blocks” used in industry. The Bearing Block mounts on a piece of structure and supports a shaft which is offset either above, below, or to the side of the structure.

Lock Bar: Another option to drive structural pieces using the Motion Subsystem is through a Lock Bar. These pieces are designed such that they can bolt onto any VEX structural component using the standard VEX 1/2” pitch. In the center of each piece there is a square hole which matches the VEX square shaft. As such, any VEX component can be “locked” to a shaft using the Lock Bar so that it will spin with the shaft. Note that the insert in each Lock Bar is removable and can be reinserted at any 15° increment.

Technical Specifications

Kit Contents
  • (6)Bearing Block
  • (4)Lock Bar
Downloads & Docs CAD Models of all motion components can be found on the VEX Wiki.
Compatibility VEX Shafts (Square bars) 0.125" (3.175mm)
Material Type Bearing Block
  • Material:Delrin

Lock Bar
  • Bar Material:Delrin
  • Insert Material:Steel
