Brand: Afinia
Product Code: 33359
Availability: In Stock
$2,199.00

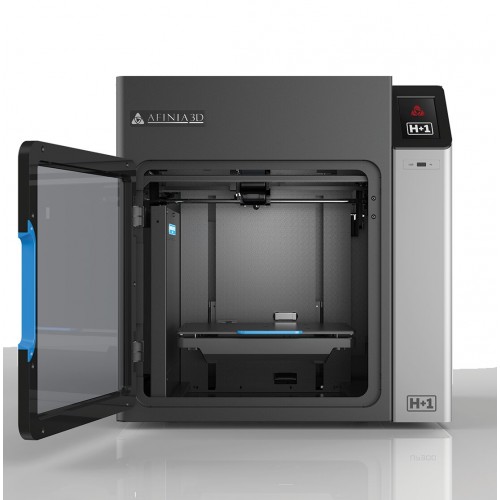

The Afinia H+1 3D printer combines a large build volume with consistency of performance. Material-specific print-heads are included, ensuring optimal print quality and compatibility across a wide range of filament types.

  • Material-specific printhead system for optimal quality and compatibility
  • Circulating dual-filtered system
  • Automated leveling and height sensing
  • 2-sided interchangeable build plates
  • Power loss print recovery filament run-out detection
  • Customizable temperature controls & filament profiles
  • Print queue for auto job management
  • Large build volume (10x8x8.8 inches)
  • Enclosed, heated platform & chamber
  • Smart support material technology
  • Multiple connectivity options (WiFi, USB, LAN, & USB Flash Drive)

Out-of-the-Box 3D Printing

The Afinia H-Series 3D Printers provide a true “Out-of-the-Box 3D Printing Experience” as the 3D Printers comes fully assembled with easy-to-install software for both the PC and Mac.

Improved Material Compatibility

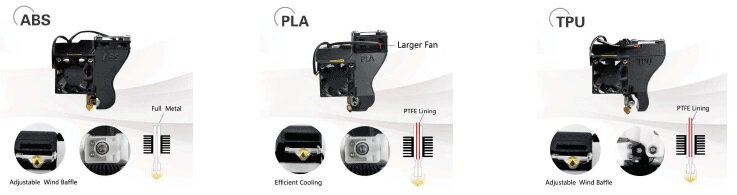

The Afinia H+1 comes with three material-specific printheads: ABS, PLA, and TPU. In contrast to the one-size-fits-all extruder, these interchangeable heads are designed specifically for each material’s characteristics, allowing for greater filament control and a better finish.


Full metal printhead tailored to high temperature material
•ABS, ABS+
•ASA
•PETG
•Polycarbonate
•Polypropylene
•Nylon
•Carbon Fiber filled depends on base material

Effective cooling system and PTFE feed path tailored to low temperature material
•PLA
•Metal Filled PLA
•Wood Filled PLA
•Carbon Fiber filled depends on the base material

Spring loaded feed path, double gear, PTFE feed path and larger nozzle size tailored to flexible material
•TPU and flexible filament

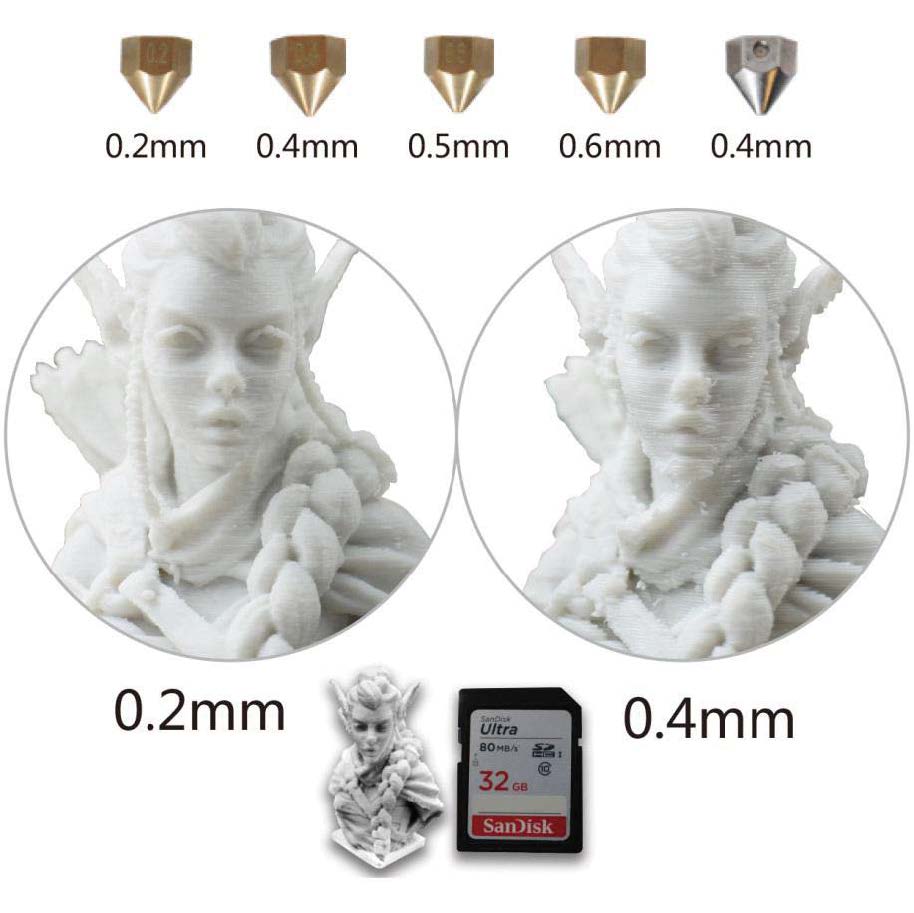

A selection of included nozzles offers even more control and quality. Print profiles and resolutions are optimized for certain nozzle sizes. H+1 nozzle sizes and resolutions


Better ABS Print Quality

ABS, known for its toughness and impact resistance, allows you to print durable parts that will hold up to extra usage and wear. Because of these characteristics, ABS material has been a favorite 3D printing material for engineers. However, due to its sensitivity to environmental conditions and smell, it is is often difficult to use with desktop 3D printers.

Afinia’s comprehensive solution for better ABS printing comes down to three important things:

  • Better ABS material
  • Software-driven improvements to print raft and print support
  • Hardware features related to heating, platform materials, and air filtration

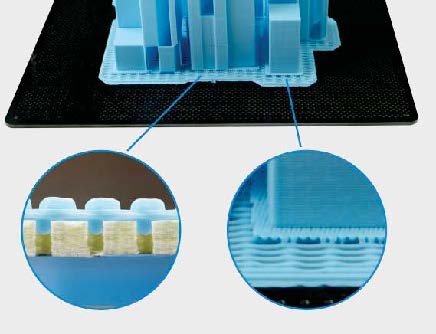

Improved ABS raft


Circulating Filtered Chamber

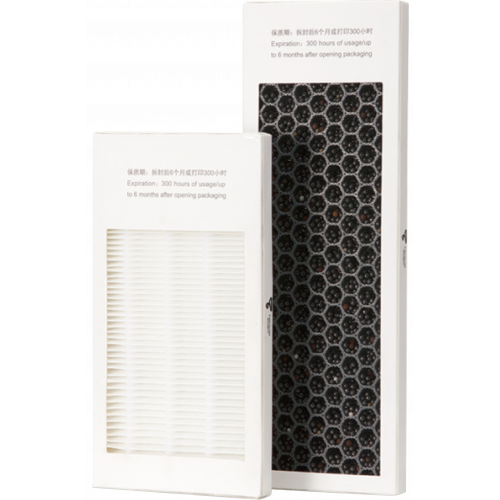

The H+1 has a large HEPA and separate Activated Carbon filter for ultimate air filtration. The H+1 uses a centrifugal fan to constantly circulate and purify air within the enclosure through both filters. Higher airflow capacity maintains minimal UFP and VOC density inside the printer.




Circulated air chamber with HEPA and Activated Charcoal air filters


Easy to Use, Powerful Software

The 3D Printer Software features an easy-to-use interface for laying out, orienting, duplicating, and scaling parts. Simply use the included utility to calibrate the printhead height, and within minutes you are printing. It easily imports STL files, and the output can be customized in terms of the amount of support material and “raft” (base support) printed. Break-away support material is simple to remove, and tools for aiding the break-away are included. Design files for 3D printing can be created using online software, professional software such as SolidWorks™, or by downloading from the extensive online 3D printer community for free.


Specifications

Build Volume

10″ W x 8″ D x 8.8″ H(255 x 205 x 225mm)


HD Print Quality

0.05mm (100 micron), 0.1 mm, 0.15 mm, 0.2mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm


Smart Support

Support material automatically created by 3D printing software


Safety

Built-in HEPA and activated carbon filters remove microfine particles


Display

4.3″ full-color touchscreen LCD


File Formats

.stl, .obj, .3mf, .up3, .ups, .ply, .off, .3ds, .gcode


Dimensions

19.6″ W x 18.1″ D x 20.5″ H(460 x 500 x 523mm)


Weight

90 lbs


Power

110-220VAC, 50-60Hz, 220W;With power loss print recover


Connectivity

WIFI, USB, USB Flash Drive, LAN (with ability to disconnect from computer when print job starts


Materials

1.75mm ABS, PLA, TPU, PC, PETG, or Flexible Filament; With filament run-out protection(included: 1 x 500g spool of filament)
