Brand: Afinia
Product Code: 28837
Availability: In Stock

This item is on sale until August 12, 2022 and includes a free 2nd year warranty. Sale price noted above

The EinScan-SE 3D scanner creates printable 3D models with high accuracy for a range of creative 3D printing applications. The scanner is a perfect fit for educators, designers, and home hobbyists looking to expand the capabilities of their 3D printer. The full-color texture scanning option is a perfect fit for animation and graphic arts. With a  low price point and fast, accurate scanning (~0.1 mm), the EinScan-SE delivers detail and performance even for non-technical users.

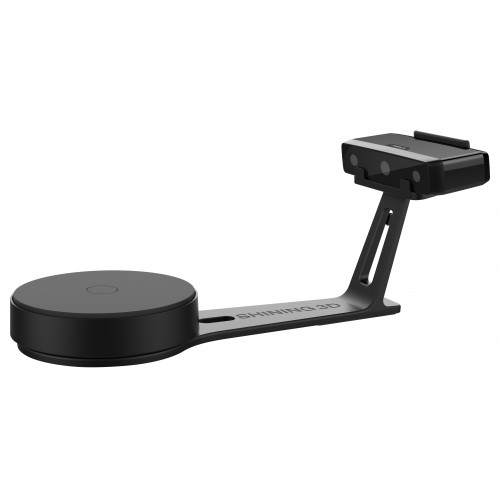

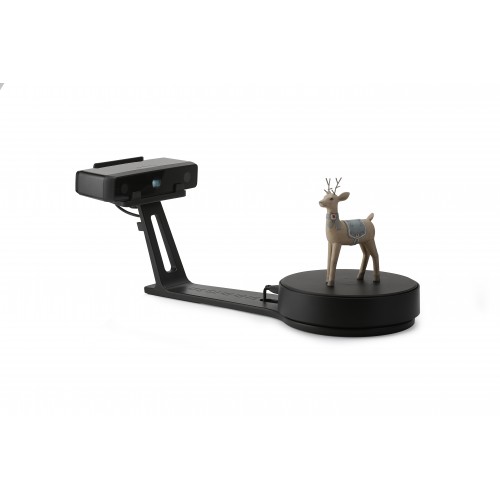

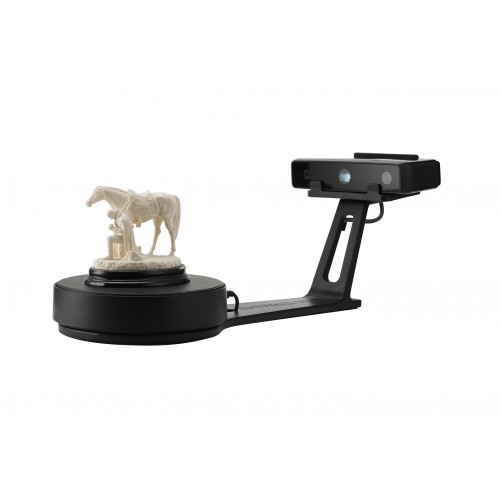

The EinScan-SE has both an automatic scan mode with an automated turntable and a fixed scan mode for larger objects. The SE is a white-light scanner using structured light or light phase shifting technology. This creates a scan that is highly accurate without the use of lasers which be dangerous to eyes.

Automatic scans take three minutes to complete, which is many times faster than similar desktop 3D scanners in the market with turntable scans. The EinScan-SE automatic scan mode allows a model to be scanned that is up to 200 x 200 x 200 mm in size. Fixed scan mode maximum size is 700 x 700 x 700 mm.

The EinScan-SE 3D Scanner comes with an Afinia, industry-leading 1 year warranty, parts and labor.  Afinia live technical support is provided by phone/email and is available Monday - Friday from 8 - 5pm Central Time.

System Requirements:

Windows 7, Window 8, Windows 10 (64-bit)

Minimum Computer Requirements:

Processor: Intel I5 CPU


Free Hard Drive Space: 1GB

Graphics Card: Nvidia series

Graphics Memory: 1GB minimum

USB Ports: Must have 1 USB 2.0 or 3.0 port


Accuracy - =0.1mm

Min. Scan Volume - 30 x 30 x 30 mm

Max. Scan Volume - Automatic scan: 200 x 200 x 200 mm / Fixed scan: 700 x 700 x 700 mm

Scan Speed - Automatic scan: <3 mins / Fixed scan: <8 sec (single range)

Point Distance - 0.17mm~0.2mm

Alignment Method - Automatic alignment / Manual alignment

Scan Mode - Automatic scan / Fixed scan

Range of Single Capture - 200 x 150 mm

Color Texture - Yes

Printing Support - Yes

Resolution - 1.3 Megapixel

Light Source - White light

Scanner Dimension - 570 x 210 x 210 mm

Weight - 2.5 kg (5.5 lbs)

Power Consumption - 50w

AC Input - 100V~230V

Single Scan Range (fixed scan) - 200x150mm

File Format - STL, ASC, OBJ, PLY

Scanner: EinScan-SE 3D Scanner with Turntable.

Included accessories:

Scanner: EinScan-SE 3D Scanner with Turntable.

Accessories: USB cable, Calibration pattern assembly.

Setup Information: Users Guide, USB drive with installation software.
