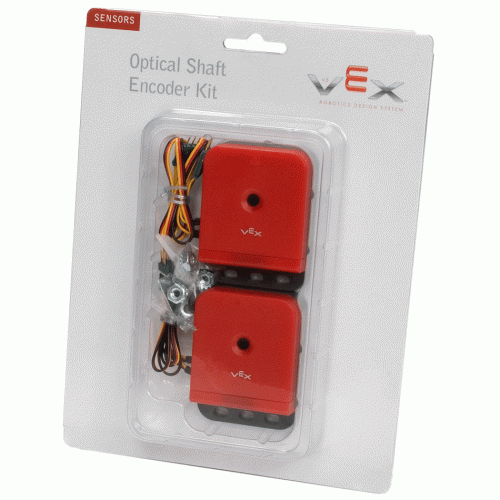

Optical Shaft Encoder (2-pack) (276-2156)
Function: The optical shaft encoder is used to measure both relative position of and rotational distance traveled by a shaft. It works by shining light onto the edge of a disk outfitted with evenly spaced slits around the circumference. As the disk spins, light passes through the slits and is blocked by the opaque spaces between the slits. The encoder then detects how many slits have had light shine through, and in which direction the disk is spinning.
Applications: The optical shaft encoder can be used to track distance traveled, direction of motion, or position of any rotary component, such as a gripper arm.
Not available in your region
With the Quadrature Encoder's two output channels you can measure both the position and direction of rotation of a VEX shaft. This will allow you to calculate the speed of the shaft, as well as the distance it has traveled; these are very useful measurements for autonomous programming. A Programming Kit is needed to change the program in the VEX Controller to use the Quadrature Encoder.
- Measure Angular Travel.
- Determine Rotational Direction.
- Calculate Shaft Speed.
- Calculate Distance Traveled.
- Increase Navigational Control.
- More Autonomous Functionality.
Overview
Applications: The optical shaft encoder can be used to track distance traveled, direction of motion, or position of any rotary component, such as a gripper arm.
Technical Specifications
| Kit Contents |
|
| Downloads & Docs |
Documentation Instruction Sheet - Optical Shaft Encoder STEP File |
| Compatibility |
All VEX Microcontrollers. 3-Wire Extension Cables. |
| Inputs |
|
| Outputs |
3-Wire Cable Connect to two interrupt inputs.
|
| Function |
|
| Weight |
|
